• SAE J1984_200210

SAE J1984_200210

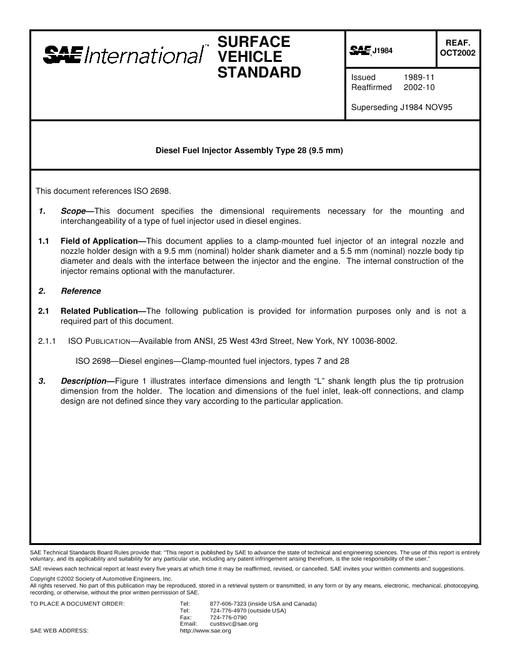

Diesel Fuel Injector Assembly Type 28 (9.5 mm)

SAE International , 10/25/2002

Publisher: SAE

File Format: PDF

$22.00$44.00


This document specifies the dimensional requirements necessary for the mounting and interchangeability of a type of fuel injector used in diesel engines.

This document applies to a clamp-mounted fuel injector of an integral nozzle and nozzle holder design with a 9.5 mm (nominal) holder shank diameter and a 5.5 mm (nominal) nozzle body tip diameter and deals with the interface between the injector and the engine. The internal construction of the injector remains optional with the manufacturer.

SAE J1984_200210 History

SAE J1984_201511

SAE J1984_201511

$24.00 $49.00

SAE J1984_200210

SAE J1984_200210

$22.00 $44.00
