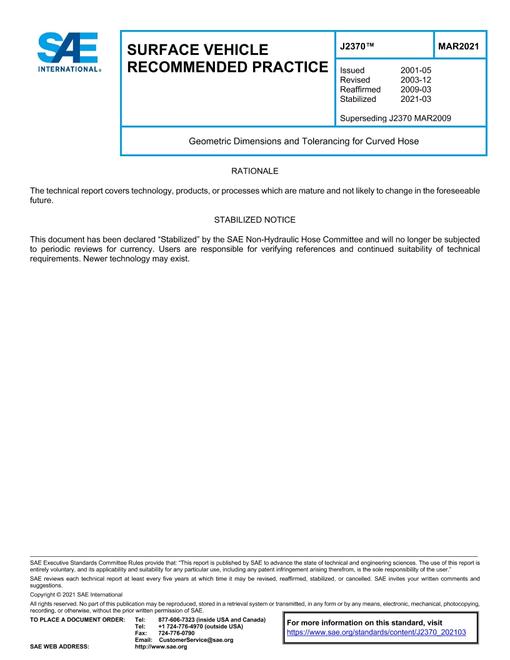

SAE J2370_202103

Geometric Dimensions and Tolerancing for Curved Hose (Stabilized: Mar 2021)

SAE International , 03/08/2021

Publisher: SAE

File Format: PDF

$47.00$94.00

Description

Standard By:SAE International , 03/08/2021

Published:03/08/2021

File Size:1 file , 940 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

To provide the curved hose industry and their customers with a recommended practice for applying GD&T procedures to curved hoses and to provide generic curved hose drawings that represent the application of GD&T to typical curved hose parts. Dimensioning and Tolerancing will be in accordance with ASME Y14.5M.
