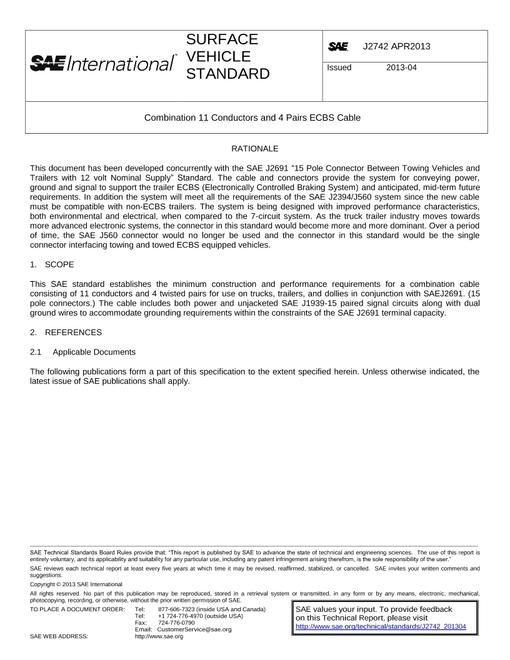

SAE J2742_201304

Combination 11 Conductors and 4 Pairs ECBS Cable

SAE International , 04/09/2013

Publisher: SAE

File Format: PDF

$40.00$81.00

Description

Standard By:SAE International , 04/09/2013

Published:04/09/2013

File Size:1 file , 200 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE standard establishes the minimum construction and performance requirements for a combination cable consisting of 11 conductors and 4 twisted pairs for use on trucks, trailers, and dollies in conjunction with SAEJ2691. (15 pole connectors.) The cable includes both power and unjacketed SAE J1939-15 paired signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.
