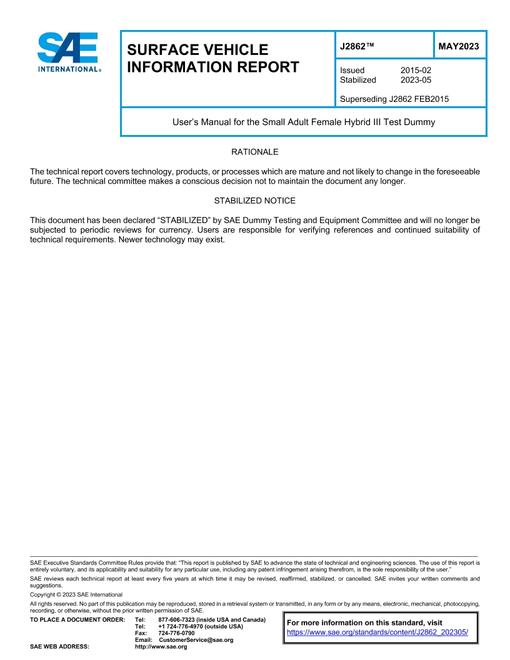

SAE J2862_202305

User’s Manual for the Small Adult Female Hybrid III Test Dummy (Stabilized: May 2023)

SAE International , 05/22/2023

Publisher: SAE

File Format: PDF

$77.00$155.00

Description

Standard By:SAE International , 05/22/2023

Published:05/22/2023

File Size:1 file , 2 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

SAE J2862_202305 PDF

This user’s manual covers the small adult female Hybrid III test dummy. It is intended for technicians who work with this device. It covers the construction and clothing, disassembly and reassembly, available instrumentation, external dimensions and segment masses, as well as certification and inspection test procedures. It includes instructions for safe handling of the instrumented dummy, repairing dummy flesh, and adjusting the joints throughout the dummy.
