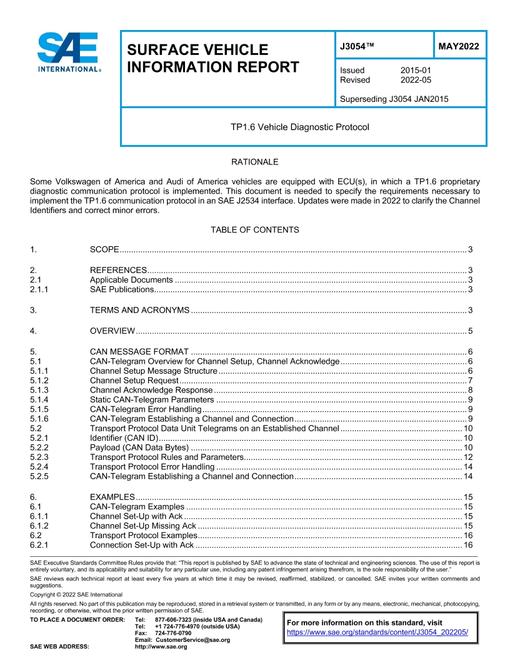

SAE J3054_202205

TP1.6 Vehicle Diagnostic Protocol

SAE International , 05/02/2022

Publisher: SAE

File Format: PDF

$58.00$117.00

Description

Standard By:SAE International , 05/02/2022

Published:05/02/2022

File Size:1 file , 610 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Information Report defines the diagnostic communication protocol TP1.6. This document should be used in conjunction with SAE J2534-2 in order to fully implement the communication protocol in an SAE J2534 interface.

Some Volkswagen of America and Audi of America vehicles are equipped with ECU(s), in which a TP1.6 proprietary diagnostic communication protocol is implemented. The purpose of this document is to specify the requirements necessary to implement the communication protocol in an SAE J2534 interface.

This SAE Information Report describes how a tester can be connected to a vehicle to perform diagnostics using the TP1.6 protocol. Details regarding ECU to ECU communication have been left out.

SAE J3054_202205

TP1.6 Vehicle Diagnostic Protocol

SAE J3054_202205 History

SAE J3054_202205

SAE J3054_201501

SAE J3054_201501
