• SAE J3105/1_202001

SAE J3105/1_202001

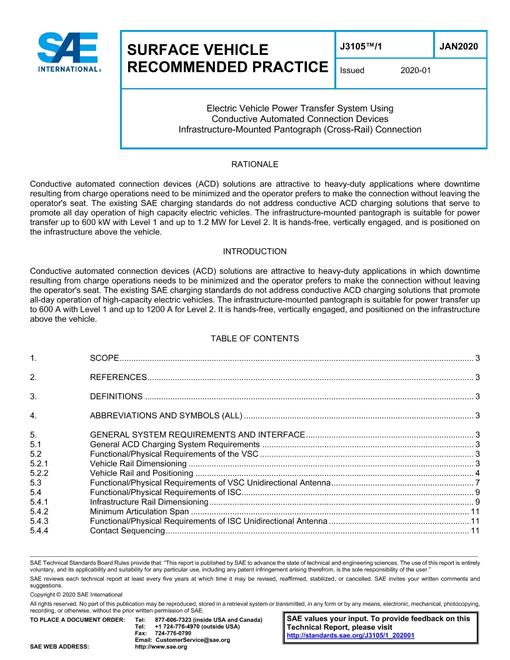

Electric Vehicle Power Transfer System Using Conductive Automated Connection Devices Infrastructure-Mounted Pantograph (Cross-Rail) Connection

SAE International , 01/20/2020

Publisher: SAE

File Format: PDF

$48.00$97.00


This document details one of the connections of the SAE J3105 document. The connections are referenced in the scope of the main document SAE J3105. SAE J3105/1 details the infrastructure-mounted pantograph, or cross-rail connection. All the common requirements are defined in the main document; the current document provides the details of the connection.
This document covers the connection interface relevant requirements for an electric vehicle power transfer system using a conductive ACD based on a cross-rail design. To allow interoperability for on-road vehicles (in particular, buses and coaches), one configuration is described in this document. Other configurations may be used for non-standard applications (for example, mining trucks or port vehicles).

SAE J3105/1_202001 History

SAE J3105/1_202305

SAE J3105/1_202305

$54.00 $108.00

SAE J3105/1_202001

SAE J3105/1_202001

$48.00 $97.00
