• SAE J3105/2_202001

SAE J3105/2_202001

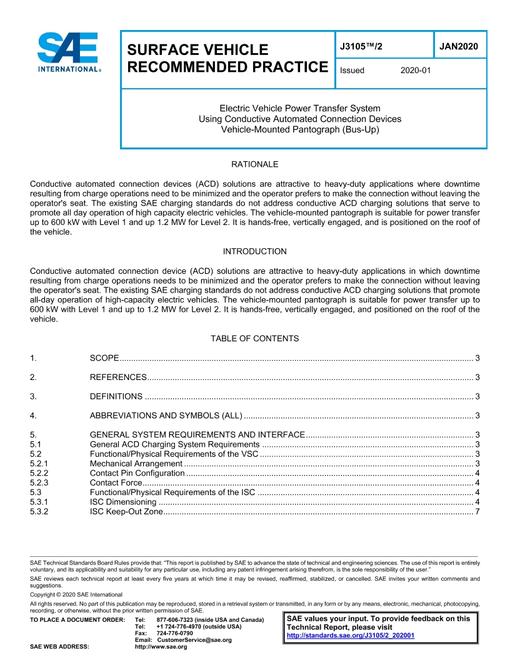

Electric Vehicle Power Transfer System Using Conductive Automated Connection Devices Vehicle-Mounted Pantograph (Bus-Up)

SAE International , 01/20/2020

Publisher: SAE

File Format: PDF

$42.00$84.00


This document details one of the connections of the SAE J3105 document. The connections are referenced in the scope of the main document SAE J3105. SAE J3105/2 details the vehicle-mounted pantograph, or the bus-up connection. All the common requirements are defined in the main document; the current document provides the details of the connection.
This document covers the connection interface relevant requirements for an electric vehicle power transfer system using a conductive automated charging device based on a conventional rail vehicle pantograph design. To allow interoperability for on-road vehicles (in particular, buses and coaches), one configuration is described in this document. Other configurations may be used for non-standard applications (for example, mining trucks or port vehicles).

SAE J3105/2_202001 History

SAE J3105/2_202305

SAE J3105/2_202305

$45.00 $91.00

SAE J3105/2_202001

SAE J3105/2_202001

$42.00 $84.00
