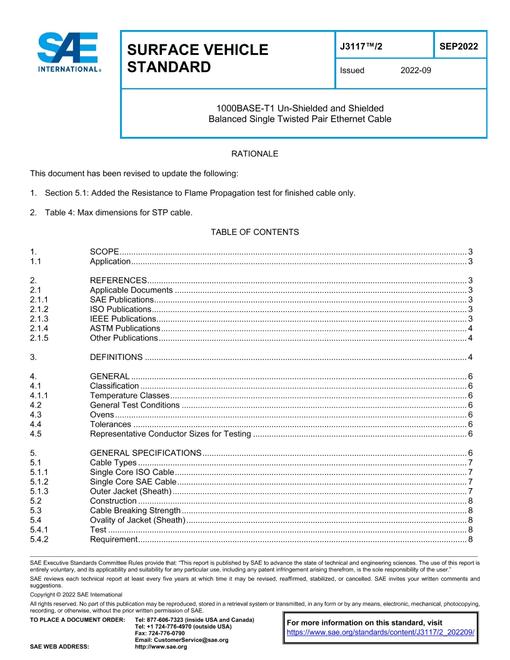

SAE J3117/2_202209

1000BASE-T1 Un-Shielded and Shielded Balanced Single Twisted Pair Ethernet Cable

SAE International , 09/30/2022

Publisher: SAE

File Format: PDF

$54.00$108.00

Description

Standard By:SAE International , 09/30/2022

Published:09/30/2022

Pages:17

File Size:1 file , 680 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This standard covers un-shielded (JUTP) and shielded (STP) balanced single twisted pair jacketed data cable intended for use in surface vehicle cables for 1000BASE-T1 ethernet PHY (1 Gb/s) applications. The tests in this standard are intended to qualify cables for normal operation in an automotive environment while maintaining the necessary electrical properties for reliable data transmission.
