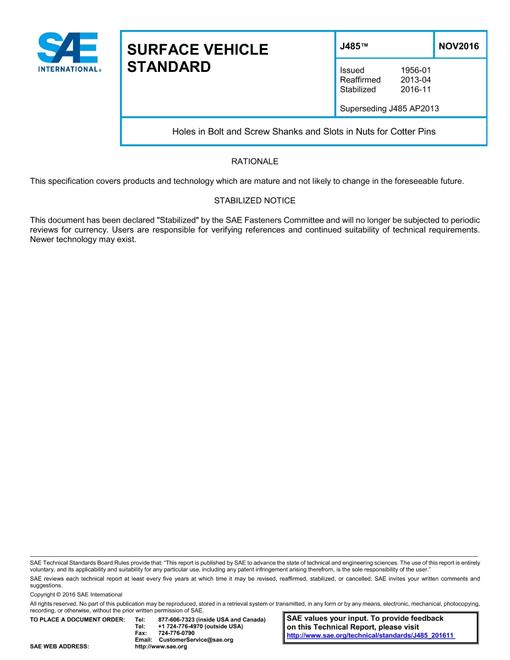

SAE J485_201611

Holes in Bolt and Screw Shanks and Slots in Nuts for Cotter Pins (Stabilized: Nov 2016)

SAE International , 11/18/2016

Publisher: SAE

File Format: PDF

$24.00$49.00

Description

Standard By:SAE International , 11/18/2016

Published:11/18/2016

File Size:1 file , 1000 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

SAE J485 specifies the recommended nominal diameters and locations of holes in bolt or screw shanks, and nominal widths and depths of slots in nuts, for use with the recommended sizes of inch-series cotter pins, as shown in Table 1.
