SAE J513_201912

Refrigeration Tube Fittings—General Specifications

SAE International , 12/19/2019

Publisher: SAE

File Format: PDF

$71.00$142.00

Description

Standard By:SAE International , 12/19/2019

Published:12/19/2019

Pages:43

File Size:1 file , 970 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

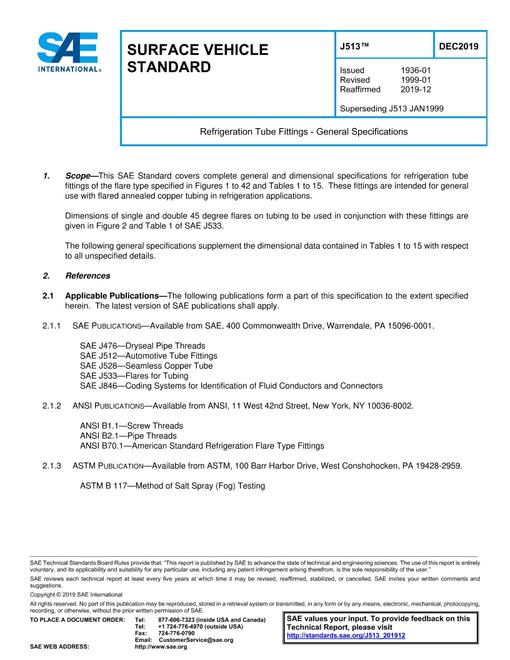

This SAE Standard covers complete general and dimensional specifications for refrigeration tube fittings of the flare type specified in Figures 1 to 42 and Tables 1 to 15. These fittings are intended for general use with flared annealed copper tubing in refrigeration applications.

Dimensions of single and double 45 degree flares on tubing to be used in conjunction with these fittings are given in Figure 2 and Table 1 of SAE J533.

The following general specifications supplement the dimensional data contained in Tables 1 to 15 with respect to all unspecified details.
