SAE J516_201903

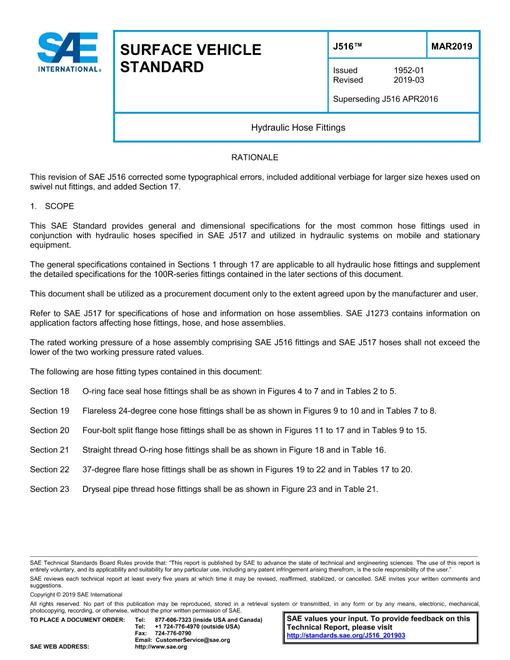

This SAE Standard provides general and dimensional specifications for the most common hose fittings used in conjunction with hydraulic hoses specified in SAE J517 and utilized in hydraulic systems on mobile and stationary equipment.

The general specifications contained in Sections 1 through 17 are applicable to all hydraulic hose fittings and supplement the detailed specifications for the 100R-series fittings contained in the later sections of this document.

This document shall be utilized as a procurement document only to the extent agreed upon by the manufacturer and user.

Refer to SAE J517 for specifications of hose and information on hose assemblies. SAE J1273 contains information on application factors affecting hose fittings, hose, and hose assemblies.

The rated working pressure of a hose assembly comprising SAE J516 fittings and SAE J517 hoses shall not exceed the lower of the two working pressure rated values.

The following are hose fitting types contained in this document:

Male and female 45-degree flare hose fittings shall be as shown by the 37-degree flare figures and tables.

It is recommended that where step sizes or additional types of fittings are required, they be designed to conform with the specifications of this document insofar as they may apply. The following general specifications shall supplement the dimensional data contained in the tables with respect to all unspecified detail.
