  • SAE J518/3_202108

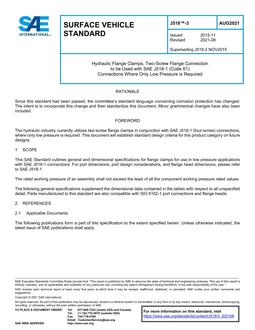

SAE J518/3_202108

Hydraulic Flange Clamps, Two-Screw Flange Connection to be Used with SAE J518-1 (Code 61) Connections Where Only Low Pressure is Required

SAE International , 08/12/2021

Publisher: SAE

File Format: PDF

$43.00$87.00


Standard By:SAE International , 08/12/2021
Published:08/12/2021
File Size:1 file , 440 KB
Language:English
Note:This product is unavailable in Ukraine, Russia, Belarus
This SAE Standard outlines general and dimensional specifications for flange clamps for use in low pressure applications with SAE J518-1 connections. For port dimensions, port design considerations, and flange head dimensions, please refer to SAE J518-1.
The rated working pressure of an assembly shall not exceed the least of all the component working pressure rated values.
The following general specifications supplement the dimensional data contained in the tables with respect to all unspecified detail. Parts manufactured to this standard are also compatible with ISO 6162-1 port connections and flange heads.
