SAE J617_202009

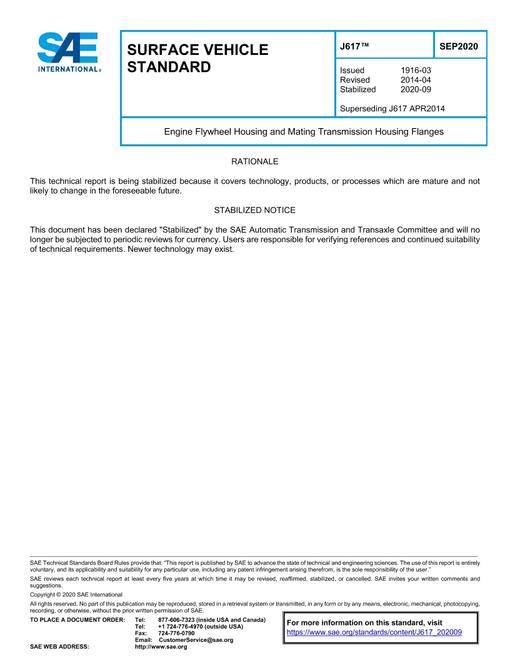

Engine Flywheel Housing and Mating Transmission Housing Flanges (Stabilized: Sep 2020)

SAE International , 09/29/2020

Publisher: SAE

File Format: PDF

$41.00$83.00

Description

Standard By:SAE International , 09/29/2020

Published:09/29/2020

Pages:9

File Size:1 file , 890 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This SAE Standard specifies the major dimensions and tolerances for Engine Flywheel Housings and the Mating Transmission Housing Flanges. It also locates the crankshaft flange face or the transmission pilot bore (or pilot bearing bore) stop face in relation to housing SAE flange face.

This document is not intended to cover the design of the flywheel housing face mating with the engine crankcase rear face or the design of housing walls and ribs. Housing strength analysis and the selection of housing materials are also excluded.

This document applies to any internal combustion engine which can utilize SAE No. 6 through SAE No. 00 size flywheel housing for mounting a transmission.
