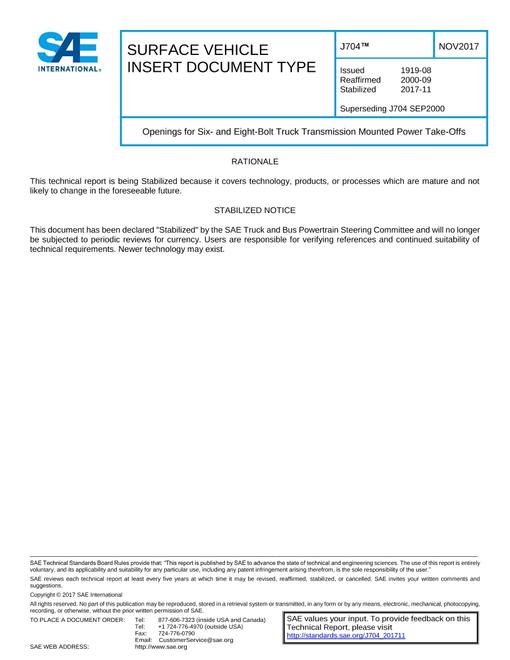

SAE J704_201711

Openings for Six- and Eight-Bolt Truck Transmission Mounted Power Take-Offs (Stabilized: Nov 2017)

SAE International , 11/03/2017

Publisher: SAE

File Format: PDF

$28.00$57.00

Description

Standard By:SAE International , 11/03/2017

Published:11/03/2017

Pages:4

File Size:1 file , 810 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

The accompanying mounting and gear locations are applicable for all general installations of power take-off on the transmission gear box of motor trucks and tractors where the size of the transmission permits.

The heavy-duty type opening can be adapted to the regular-duty type by the use of an adapter with 6.35 mm (0.25 in) flange thickness with appropriate bolt pattern and thread engagement. (See Figures 1 and 2.)
