• SAE J826_202106

SAE J826_202106

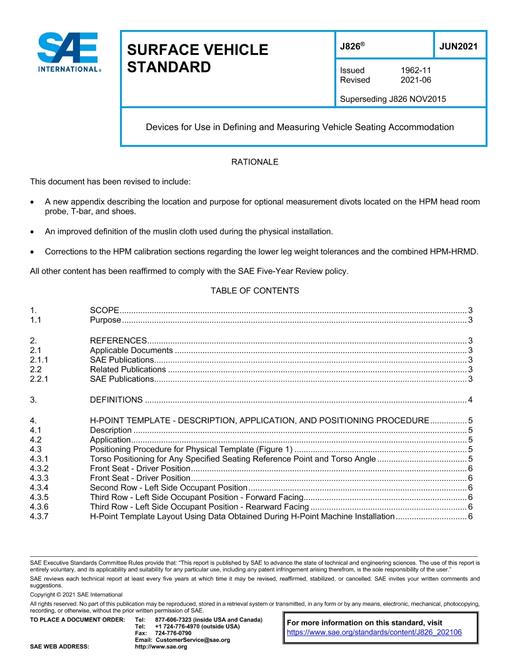

Devices for Use in Defining and Measuring Vehicle Seating Accommodation

SAE International , 06/22/2021

Publisher: SAE

File Format: PDF

$67.00$135.00


The devices of this SAE Standard provide the means by which passenger compartment dimensions can be obtained using a deflected seat rather than a free seat contour as a reference for defining seating space. All definitions and dimensions used in conjunction with this document are described in SAE J1100. These devices are intended only to apply to the driver side or center occupant seating spaces and are not to be construed as instruments which measure or indicate occupant capabilities or comfort. This document covers only one H-point machine installed on a seat during each test. Certified H-point templates and machines can be purchased from:
  1. SAE International
    400 Commonwealth Drive
    Warrendale, PA 15096-0001
Specific procedures are included in Appendix A for seat measurements in short- and long-coupled vehicles and in Appendix B for measurement of the driver seat cushion angle. Specifications and a calibration inspection procedure for the H-point machine are given in Appendix C. Additional considerations are necessary when a head restraint measuring device (HRMD) is mounted to an H-point machine (Appendix D).

SAE J826_202106 History

SAE J826_202106

SAE J826_202106

$67.00 $135.00

SAE J826_201511

SAE J826_201511

$58.00 $117.00

SAE J826_201511

SAE J826_201511

$58.00 $117.00

SAE J826_200811

SAE J826_200811

$59.00 $118.00
