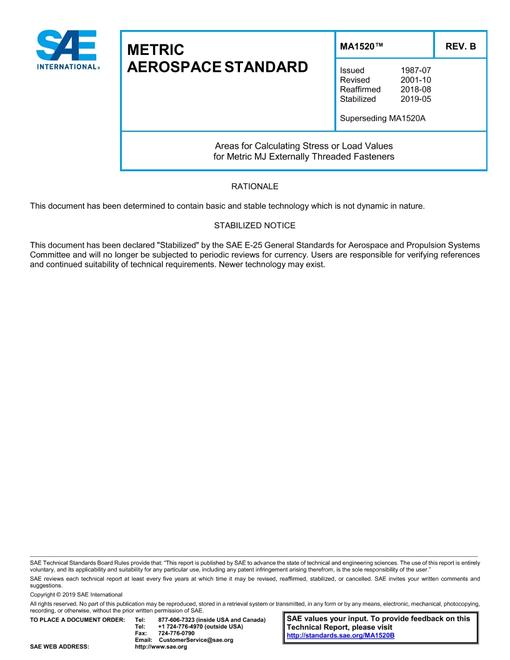

SAE MA1520B

Areas for Calculating Stress or Load Values for Metric MJ Externally Threaded Fasteners (Stabilized: May 2019)

SAE International , 05/03/2019

Publisher: SAE

File Format: PDF

$31.00$63.00

Description

Standard By:SAE International , 05/03/2019

Published:05/03/2019

Pages:5

File Size:1 file , 1.7 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

Areas for the standard metric series of thread diameter-pitch combinations for aerospace externally threaded fasteners are established for the following conditions:

a. Area for ultimate shear stress or load in unthreaded shank.
b. Area for ultimate tensile stress or load in thread.
c. Area for stress durability test load in thread.
d. Area for stress-rupture test load at elevated temperature.
e. Area for tension-tension fatigue test load.
