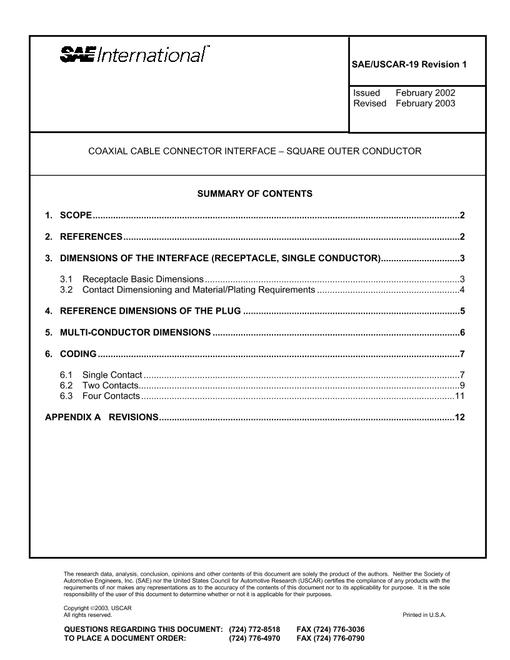

SAE USCAR19-1

COAXIAL CABLE CONNECTOR INTERFACE ¿¿¿ SQUARE OUTER CONDUCTOR

SAE International , 03/10/2003

Publisher: SAE

File Format: PDF

$42.00$84.00

Description

Standard By:SAE International , 03/10/2003

Published:03/10/2003

File Size:1 file , 250 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

This radio frequency (RF) connector interface specification is suited for unsealed automobile applications up to 2 GHz. Dimensional requirements are specified in this document to ensure interchangeability. This RF connector interface specification is intended for in-line, board mount, device mount, straight or angled applications. Performance requirements are specified in SAE/USCAR-2, and in SAE/USCAR-17.
