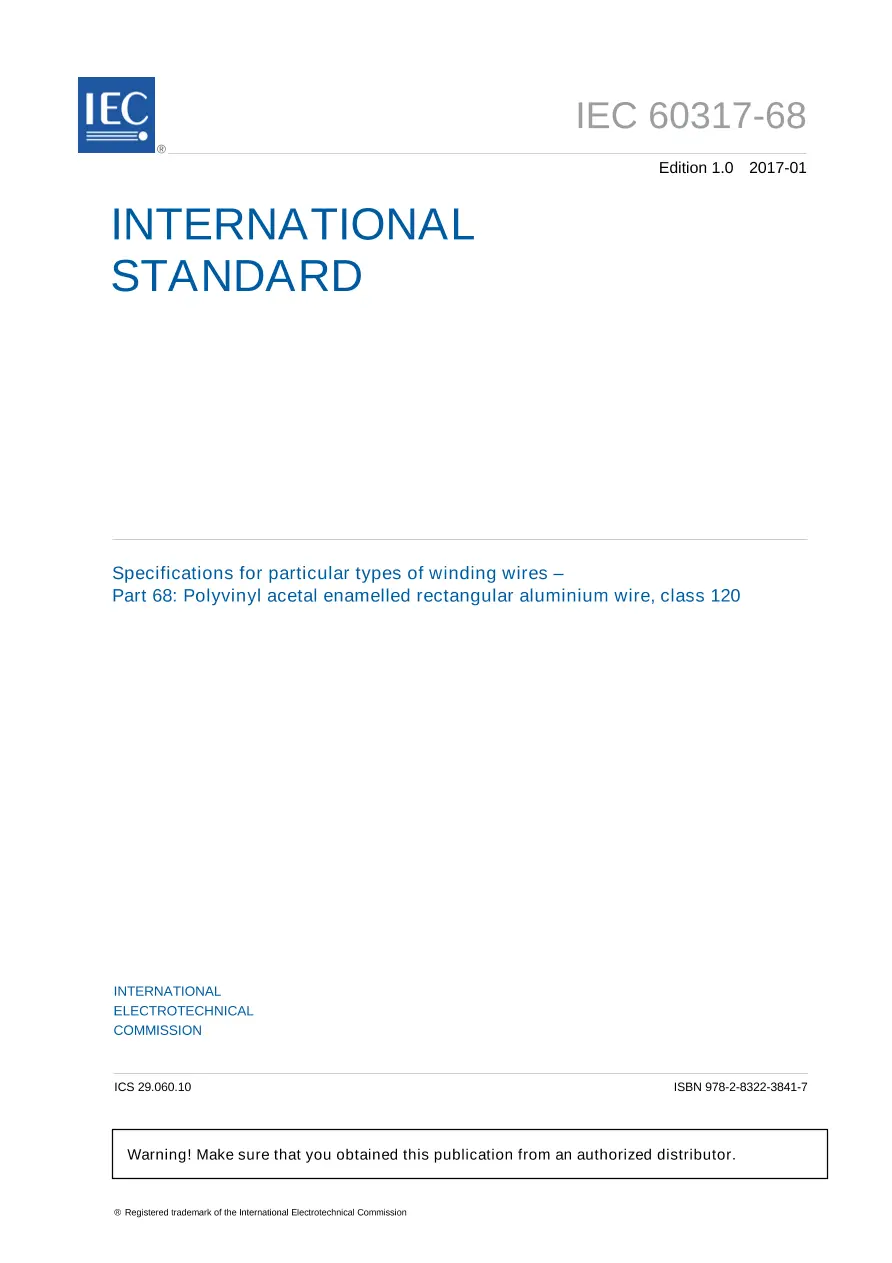

IEC 60317-68 Ed. 1.0 en:2017

Specifications for particular types of winding wires - Part 68: Polyvinyl acetal enamelled rectangular aluminium wire, class 120

International Electrotechnical Commission , 01/20/2017

Publisher: IEC

File Format: PDF

$25.00$51.00

Description

Standard By:International Electrotechnical Commission , 01/20/2017

Published:01/20/2017

Pages:10

File Size:1 file , 230 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60317-68: 2017 specifies the requirements of enamelled rectangular aluminium winding wire of class 120 with a sole coating based on polyvinyl acetal resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The range of nominal conductor dimensions covered by this standard is
Wires of grade 1 and grade 2 are included in this part of IEC 60317 and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specific ratio width/thickness are given in IEC 60317-0-9:2015.
Keywords: insulated wires used for windings in electrical equipment, class 120
