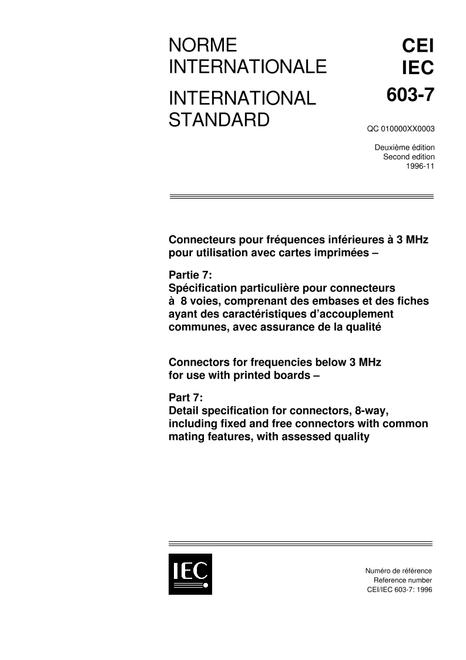

IEC 60603-7 Ed. 2.0 b:1996

Connectors for frequencies below 3 MHz for use with printed boards - Part 7: Detail specification for connectors, 8-way, including fixed and free connectors with common mating features, with assessed quality

International Electrotechnical Commission , 11/14/1996

Publisher: IEC

File Format: PDF

$102.00$204.00

Description

Standard By:International Electrotechnical Commission , 11/14/1996

Published:11/14/1996

Pages:101

File Size:1 file , 830 KB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

Covers an 8-way connector system of 4, 6 or 8 contacts consisting of a range of free and fixed connectors. The connectors cover a variety of different mounting configurations and termination types with a common mating configuration. Fixed connectors ate provided with terminations suitable for solder, insulation displacement, screw terminal, crimp, insulation piercing termination, printed board mounting and flying leads. Free connectors are provided for crimp, insulation piercing and insulation displacement termination to cable assemblies with tinsel, stranded or solid wire conductors.
