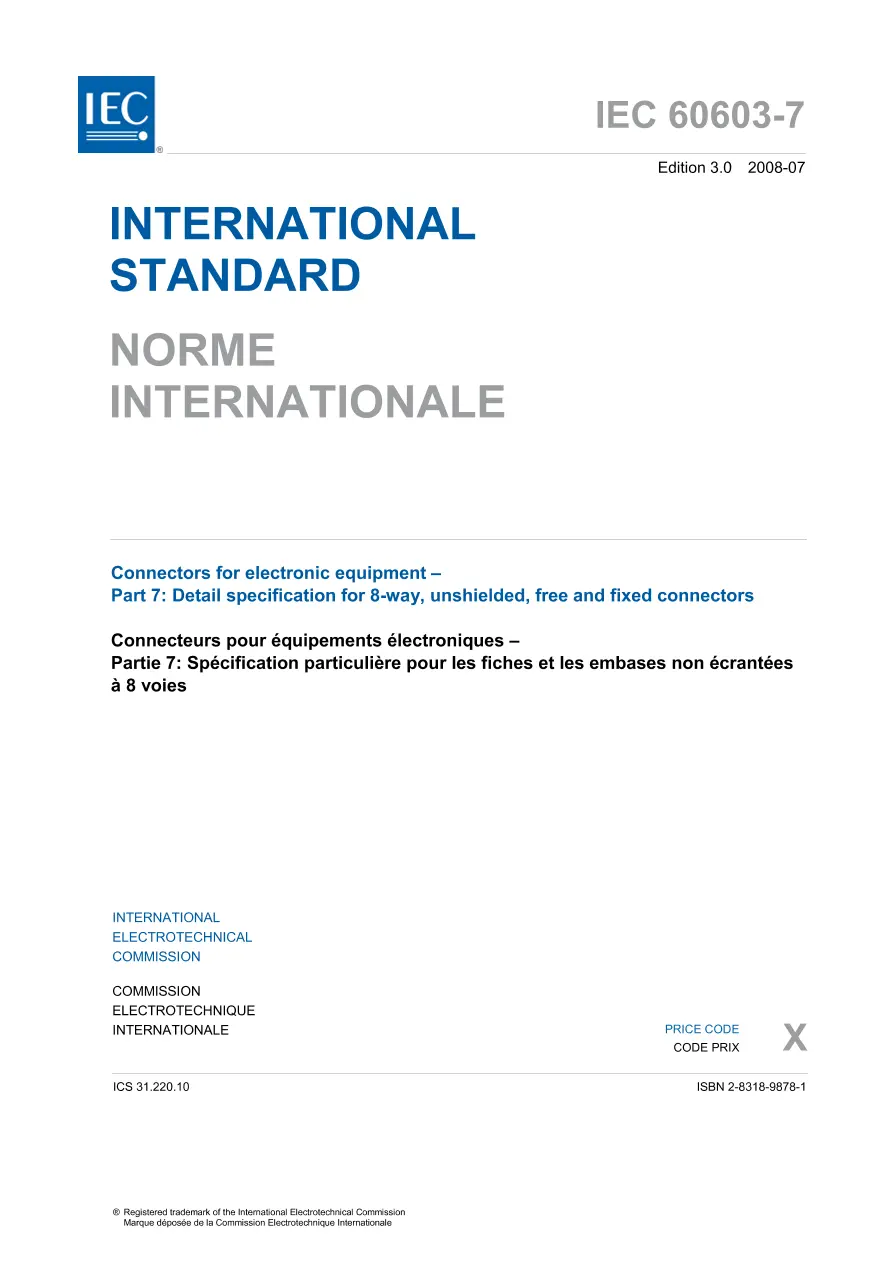

IEC 60603-7 Ed. 3.0 b:2008

Connectors for electronic equipment - Part 7: Detail specification for 8-way, unshielded, free and fixed connectors

International Electrotechnical Commission , 07/09/2008

Publisher: IEC

File Format: PDF

$140.00$281.00

Description

Standard By:International Electrotechnical Commission , 07/09/2008

Published:07/09/2008

Pages:92

File Size:1 file , 1.3 MB

Language:English, French

Note:This product is unavailable in Ukraine, Russia, Belarus

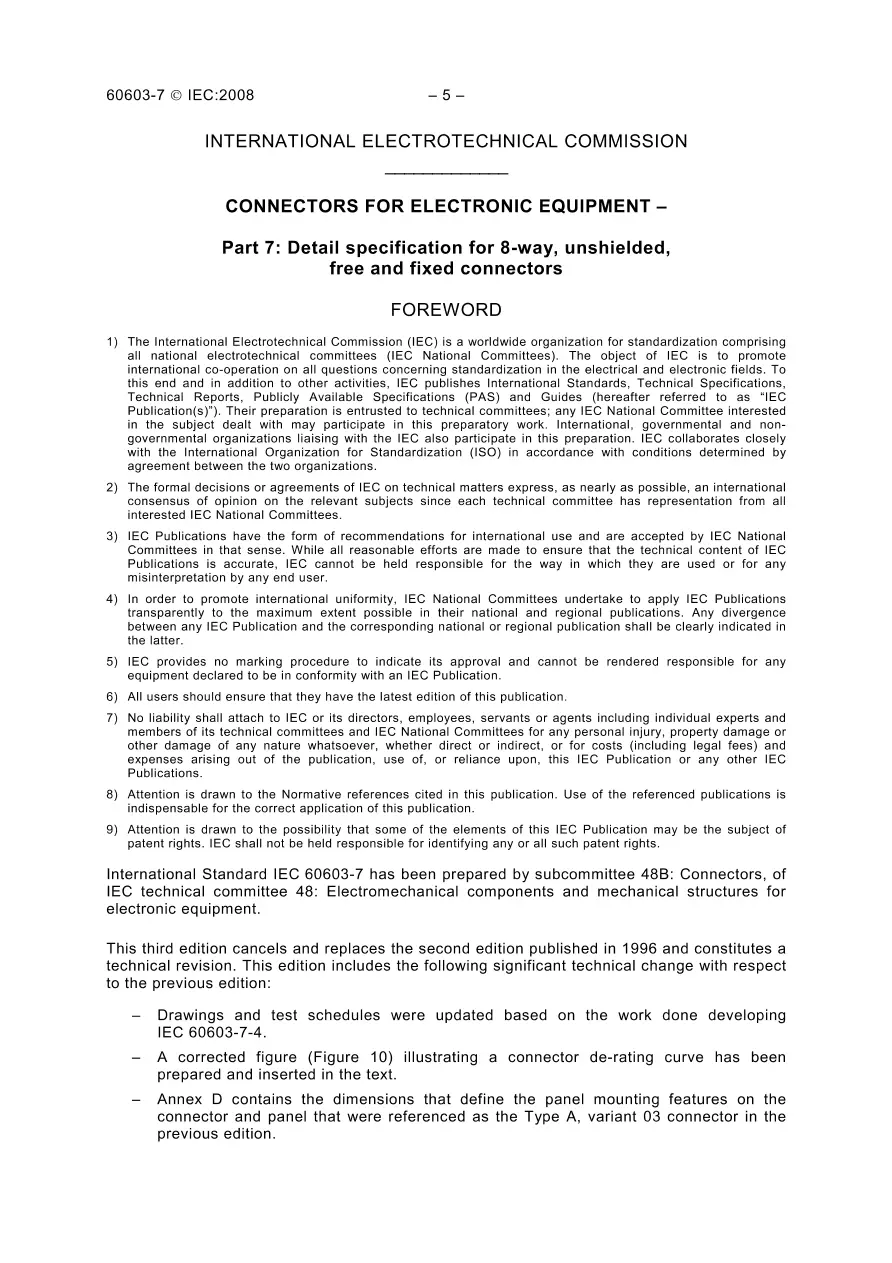

IEC 60603-7:2008 covers 8-way unshielded free and fixed connectors and is intended to specify the common dimensions, mechanical, electrical and environmental characteristics and tests for the family of IEC 60603-7-x connectors. These connectors are intermateable and interoperable with other IEC 60603-7 series connectors. This new edition includes the following significant technical changes with respect to the previous edition: updated drawings and test schedules on the basis of IEC 60603-7-4; corrected figure illustrating a connector de-rating curve.
