SAE J2691_201304

15 Pole Connector Between Towing Vehicles and Trailers with 12 Volt Nominal Supply

SAE International , 04/09/2013

Publisher: SAE

File Format: PDF

$35.00$70.00

Description

Standard By:SAE International , 04/09/2013

Published:04/09/2013

File Size:1 file , 200 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

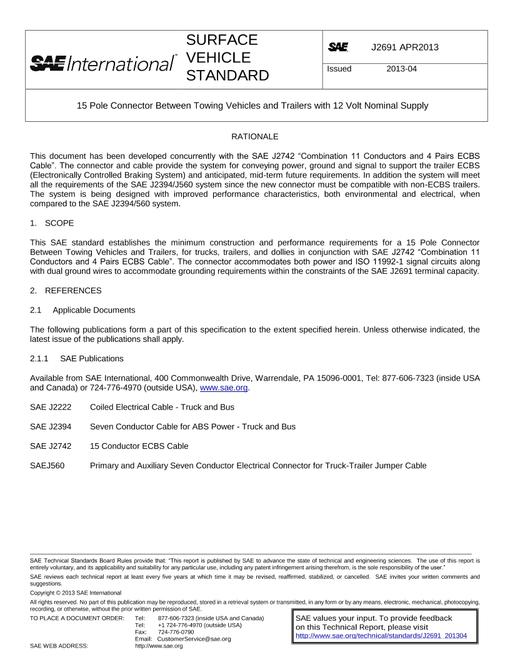

This SAE standard establishes the minimum construction and performance requirements for a 15 Pole Connector Between Towing Vehicles and Trailers, for trucks, trailers, and dollies in conjunction with SAE J2742 "Combination 11 Conductors and 4 Pairs ECBS Cable". The connector accommodates both power and ISO 11992-1 signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.
