SAE J2691_202002

15 Pole Connector Between Towing Vehicles and Trailers with 12 Volt Nominal Supply

SAE International , 02/25/2020

Publisher: SAE

File Format: PDF

$39.00$79.00

Description

Standard By:SAE International , 02/25/2020

Published:02/25/2020

Pages:8

File Size:1 file , 260 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

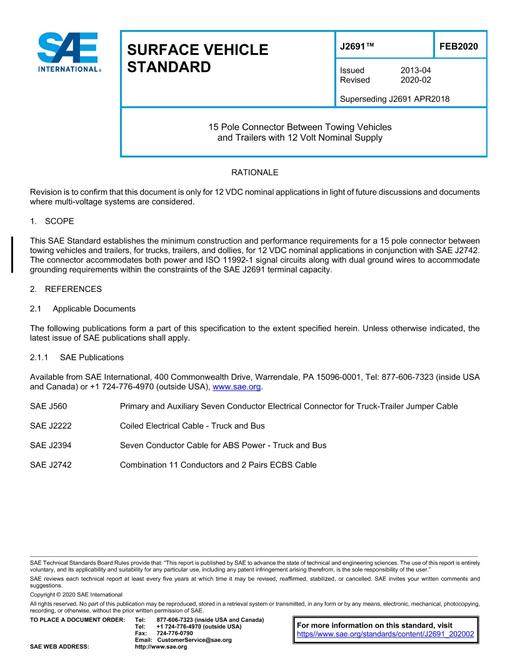

This SAE Standard establishes the minimum construction and performance requirements for a 15 pole connector between towing vehicles and trailers, for trucks, trailers, and dollies, for 12 VDC nominal applications in conjunction with SAE J2742. The connector accommodates both power and ISO 11992-1 signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.
