SAE J518/2_201704

Hydraulic Flanged Tube, Pipe, and Hose Connections, 4-Screw Flange Connection Part 2: 42 MPa (Code 62)

SAE International , 04/13/2017

Publisher: SAE

File Format: PDF

$51.00$103.00

Description

Standard By:SAE International , 04/13/2017

Published:04/13/2017

Pages:15

File Size:1 file , 680 KB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

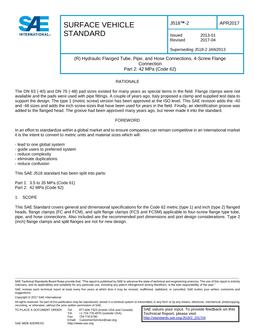

SAE J518/2_201704 covers general and dimensional specifications for the Code 62 metric (type 1) and inch (type 2) flanged heads, flange clamps (FC and FCM), and split flange clamps (FCS and FCSM) applicable to four-screw flange type tube, pipe, and hose connections. Also included are the recommended port dimensions and port design considerations. Type 2 (inch) flange clamps and split flanges are not for new design.
