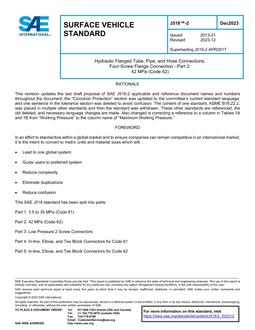

SAE J518/2_202312

Hydraulic Flanged Tube, Pipe, and Hose Connections, Four-Screw Flange Connection - Part 2: 42 MPa (Code 62)

SAE International , 12/26/2023

Publisher: SAE

File Format: PDF

$56.00$112.00

Description

Standard By:SAE International , 12/26/2023

Published:12/26/2023

File Size:1 file , 1.2 MB

Language:English

Note:This product is unavailable in Ukraine, Russia, Belarus

SAE J518/2_202312 PDF

This SAE Standard covers general and dimensional specifications for the Code 62 metric (Type 1) and inch (Type 2) flanged heads, flange clamps (FC and FCM), and split flange clamps (FCS and FCSM) applicable to four-screw flange type tube, pipe, and hose connections. Also included are the recommended port dimensions and port design considerations. Type 2 (inch) flange clamps and split flange clamps are not for new design.

The flanged heads specified are incorporated into fittings having suitable means for attachment of tubes, pipes, or hoses to provide connection ends. These connections are intended for application in hydraulic systems, on industrial and commercial products, where it is desired to avoid the use of threaded connections.

The rated working pressure of an assembly shall not exceed the least of all the component working pressure rated values.

The following general specifications supplement the dimensional data contained in the tables with respect to all unspecified detail. Parts manufactured to this standard are interchangeable with ISO 6162-2 and connectors to either standard can be supplied with the exception of the -40 and -48 Type 2 connections that are included in SAE J518-2, but not ISO 6162-2.
